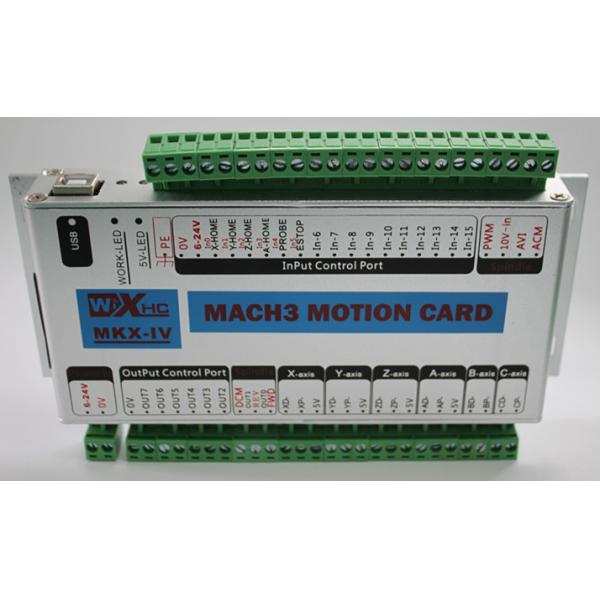

Model:LBMKX-04
Detail:
1.Supports all versions of Mach3
2.Only for the WINDOWS operating system
3.USB no need to install drivers, all versions of the Windows plug
and play.
4.Full USB support hot swappable, to monitor the USB connection,
Mach3, USB cable pull out and plug it in again, can also be normal
connection.
5.Supports up to 6 axis, 6 axis linkage including point. (according
to the different models, different number of support shaft)
6.Pulse output with 2MHz, then the servo / step.
7.A status indicator, can indicate the USB connection, Mach3
connection, operation, all kinds of state stick out a mile.
8.With 16 IO input, 8 IO output port
9.All IO ports isolation, anti-interference ability, stable
performance
10.Support PWM output shaft speed spindle pulse + direction output;
support; support the spindle speed 0 to 10V analog voltage output.
11.Small volume, 184*110*30 mm, aluminum shell, shield the
disturbance, stable and reliable
Features and applications:
